OmniGuard 5 Differential Pressure Monitor • #IOG5 • Replaced with IOG6

OmniGuard 5 Differential Pressure Monitor • #IOG5 • Replaced with IOG6

PRODUCT NO. IOG5

$1,895.00 USD
$1,895.00 USD
Sale Sold out
Find A Distributor

Now shipping the new OmniGuard 6

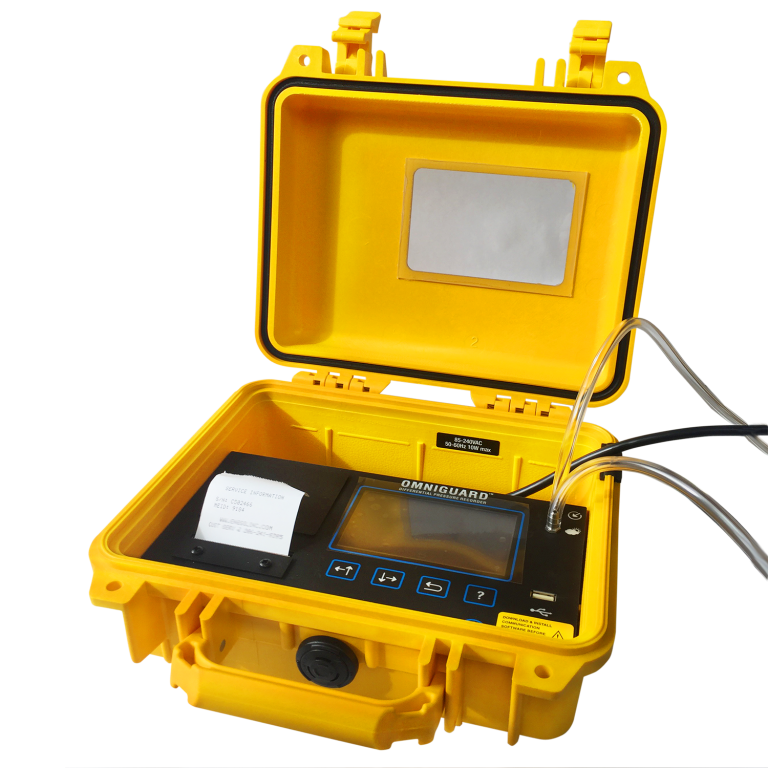

The OmniGuard 5 is the gold standard for differential pressure monitoring and recording in a self-contained, ruggedized case, designed for ultimate flexibility and ease of use. The key feature of the OmniGuard 5 manometer is its capacity to record and store large numbers of highly accurate interval pressure readings, alarm history and setting changes in a history log that can be viewed on the screen or easily downloaded to an external USB flash drive.

Need Thermal Paper Roll Refills? Click here.

Specifications

Operating Pressure Range: +/- 0.250 inches Water Column (+/- 6.35 mm WC, +/- 62. Pascals)

Accuracy: +/- 0.003 inches Water Column or +/- 1% of reading whichever is greater

Resolution: 0.001 inches Water Column (+/- 0.05 mm WC, +/- 0.5 Pascals)

Burst Pressure: 3 psi (20 kPa) on either inlet nozzle

Pressure Units: "WC (inches Water Column), mm WC (millimeters Water Column) or Pa (Pascals)

Data (Log) Storage: 4 MB non-volatile memory

Display: 4.3" Color Touchscreen LCD (480 x 272 pixels)

Internal Clock: Powered by a self-charging lithium-ion battery (provides clock operation when AC power is not present)

Printer: 20-character wide thermal printer (uses 2.25" wide thermal printer paper)

Pressure Reading Log Rates (Log Rate): Normal Operation – Highest and lowest pressure readings logged & printed at intervals of 5, 15, 30 minutes or OFF

Alarm Condition – Highest and lowest pressure readings logged & printed at intervals of 15, 30, 60 or 120 seconds for first 10 minutes of alarm condition, increasing to 15-minute intervals thereafter

Alarms: (2) programmable alarm settings, 95db audible alarm and red-bordered on-screen warning indication alarm condition

Cellular Service: Cellular modem can email status changes up to four times per hour and the jog log of the last 24 hours once a day. First two years are free (provided by Verizon).

WiFi: WiFi can email status changes up to four times per hour and the jog log of the last 24 hours once a day. Supports 802.11b/g/n with WEP, WPA or WPA2.

Pressure Inlet Nozzles: (2) 3/16" OD barbed hose connectors, 10 ft of pressure hose provided

USB Ports: (1) USB V1.1 Type-A, (1) USB V1.1 Type-B

AC Power: 80-240 VAC 50-60Hz 10W (with 6 ft power cord)

Battery Power: Internal rechargeable 3.7 Volt Li-ion type battery provides 4-6 hours of portable operation, recharges in 4 hours when AC power is available.

Operating Temperature Range: 32°F to 104°F (0°C to 40°C)

Case: Copolymer polypropylene (shell and handle), Polycarbonate (window), Stainless-steel (hanging hook)

Dimensions: 9.25" x 7.5" x 4.5"

Shipping Weight: 8 lbs.

Warranty: One Year Limited Warranty

View full details

  • Key Features

    • Digital Manometer for real-time monitoring of differential pressure
    • Wide Operating Range with very tight accuracy (+/- 0.003 in. WC or +/- 1% accuracy)
    • Ultra-tough case with clear viewing window
    • 4.3″ color touch screen display for easy operation
    • 95 decibel audible alarm notifies workers and bystanders when containment is lost
    • 4 MB of internal storage for logging up to six months of data
    • Built-in thermal printer means no ink ribbons or expensive replacement cartridges
    • Dual USB ports enable easy set-up and data transfer options
    • Built-in cellular modem and WiFi gives you 24/7 remote monitoring of the job site
